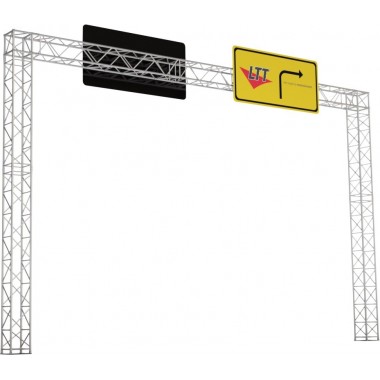

From our truss systems, gantries for traffic control can be created quickly, mobile and safely. Whether stationary or temporary, we have the right truss systems for every task in the field of traffic technology.
This set of truss construction for gantry bridge consists of the following single system components:
4 pcs. Naxpro-Truss ST 54 straight 400 cm
2 pcs. Naxpro-Truss ST 54 straight 250 cm
1 pcs. Naxpro-Truss ST 54 straight 200 cm
2 pcs. Naxpro-Truss ST 54 Boxcorner
16 pcs. Naxpro-Truss ST 54 sleeve 85 mm for Boxcorner M16
16 pcs. Naxpro-Truss ST54 bolt individually with thread and nut
2 pcs. Naxpro-Truss - FD-HD 34/44 – base plate 520 x 520 x 20 mm
8 pcs. Naxpro-Truss ST54 half cone M16+30mm Space und 60mm Ring o. bolt u.split pin
1 pcs. Static calculation (second proof)
Technical data truss construction for gantry bridge
ST54 – 11,00 m wide – 7,00 m high:
outside width: 11,00 m
inside width: 10,00 m
exterior hight: 7,00 m
interior height: 6,50 m
Truss system: Naxpro Truss ST54
Foundation: at least 2 tons per support, depending on the trailer load and size of the sign (not included in the set)
Total weight: approx. 450 kg
