NAXPRO-TRUSS TD 44 STRAIGHT 300 CM | TD 44

Naxpro-Truss TD 44 Tower Truss System

The TÜV certified  TD 44 Tower truss system perfectly complements the FD 44 and HD 44 series, as they are based on the same connection system.
Due to the stable 50x4 mm belt tube and the 25x3mm diagonals, this system has the ideal prerequisite for the creation of truss supports.
The ladder bracings, which are welded in on both sides, provide a comfortable climb and make assembly much easier.
These features make Naxpro truss tower systems perfect for stage roofs and other truss constructions.
The system is friction-locked via a conic connection.
The connectors are included in delivery.
To connect the truss all you need in terms of tools is a small aluminum hammer.
The Naxpro TD 44 truss system is available in all RAL-colours and custom constructions.

Technical data:
Overall widht 400 mm
Outer diameter tubing: 50x4 mm
Diagonal 25x3 mm

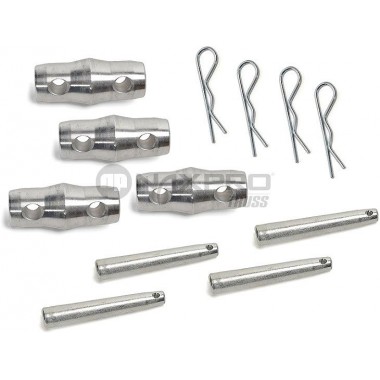

Including cone connector with bolt and split pin (4x cone, 8x bolt, 8x split pin)
Alloy EN AW 6082 T6
TÜV certified
Weight: 30,742 kg
Dimensions: 300 x 40 x 40 ( LxWxH )
