NAXPRO-TRUSS HD 31 STRAIGHT 500 CM | HD 31

Naxpro HD 31 Truss System


The TÜV certified HD 31 truss system by Naxpro-Truss in 1-point heavy duty design, convinces with its strength, lightness, small size and flexibility. HD 31 trusses can be combined with all components of the Naxpro Truss systems FD 31 - HD 34 and FD 42 - HD 44, taking into account the respective load table. Excellent suitable for the decorative construction of display fixtures, geometric bodies such as cubes and cuboids, advertising frames and rigging systems. There are no limits to the variety of applications due to the high flexibility system.  The system is by means of conical connection connected force fit. The connectors are included. To connect the trusses, you only need a lightweight Riggatec aluminum hammer as a tool. Special constructions and powder coatings can be realized in a short time.

Technical Specifications HD 31:
supporting tube: 50 x 3mm

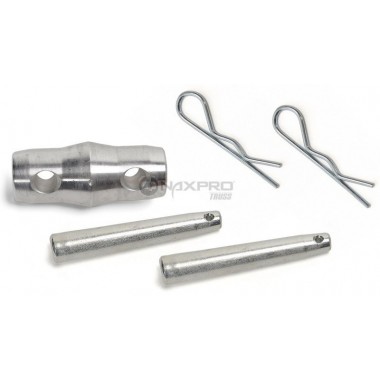

including cone connectors with bolts and r-spring (1x cone connector, 2x bolt, 2x r-clip)
alloy: EN AW 6082 T6
TÜV certified
weight: 6,24 kg
dimensions: 500 x 5,0 x 5,0 cm (LxBxH)
