NAXPRO-TRUSS FD 43 TRUSS CIRCLE 8 M TIP INSIDE | FD 43 Circles

Naxpro-Truss FD 43 Truss Circle 8 m Tip Inside Truss domes, truss circles and stages with round roofs have one thing in common: constructions with bent elements are always an optical highlight. Also as illuminated banner frames, truss circles attract the attention of visitors and highlight your advertisements.

By default truss circles with a diameter from 2 up to 10 m are offered. By request we will also manufacture custom sizes with a diameter above 10 m. Our truss circles are available in all RAL-colours.

Technical data:
Outside diameter: 800 cm
Inside diameter: 729,4 cm
Seperated in 8 segments each 45º
Edge dimension: 400 mm
Tube: 50 x 2 mm
Alloy: EN AW 6082 T6

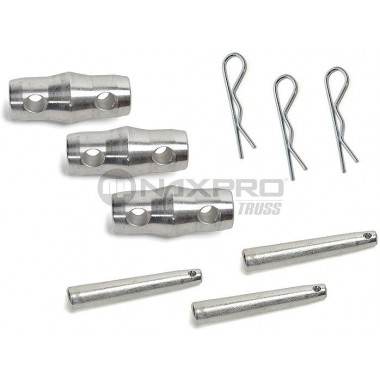

Incl. connector set
Weight: 123,09 kg
