NAXPRO-TRUSS FD 42 STRAIGHT 50 CM | FD 42

Naxpro FD 42 Truss System

TÜV certified truss system in 2-point design, especially suitable for exhibition stand and store construction, event technology, as well as a load bearing system for lighting systems. Through the use of compact format and high-load bearing capacity this system is equally well used for simple exhibition stands and highly complex rigging structures.

Through the use of cone connectors, the system is connected actuated by adherence. The connectors are included in delivery. To connect the truss all you need in terms of tools is a small aluminium hammer. Special design constructions and powder-coating are feasible in little time.

Technical data:
Overall width: 400 mm
Outer diameter tubing: 50 x 2 mm
Diagonals: 25 x 3 mm

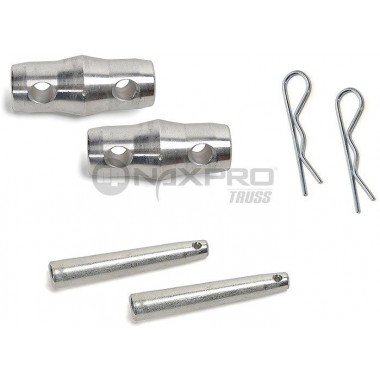

Including cone connectors with pin and r-spring (2 x cone connector, 4x bolt, 4x r-clip)
Alloy: EN AW 6082 T6
TÜV certified
Weight: 2,40 kg
Dimensions: 50 x 40 x 5 cm (LxBxH)
