NAXPRO-TRUSS FD 34 STRAIGHT 125 CM BLACK

Naxpro FD 34 Truss System Black Powder-Coated

Truss system in 4-point design, especially suitable for exhibition stand and store construction, event technology, as well as a load bearing system for lighting systems. Through the use of compact format and high-load bearing capacity this system is equally well used for simple exhibition stands and highly complex rigging structures. Through the use of cone connectors, the system is connected actuated by adherence. The connectors are included in delivery. To connect the truss all you need in terms of tools is a small aluminium hammer. Special design constructions and powder-coating are feasible in little time.


Technical data:
Version Black Powder-Coated
Overall width 290 mm
Outer diameter tubing 50x2 mm
Diagonal bracing 20x2 mm

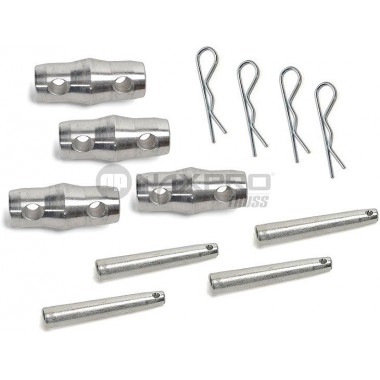

Including cone connectors with pin and r-spring  (4x cone connector, 8x bolt, 8x r-clip)
Alloy EN AW 6082 T6
Weight: 8,20 kg
Dimensions: 125 x 29 x 29 cm (LxWxH)
