NAXPRO-TRUSS FD 24 C35 90° 3 WAY CORNER | FD 24

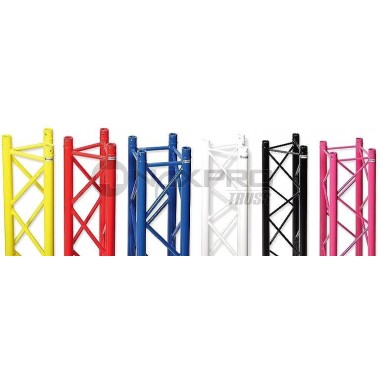

Naxpro FD 24 Truss System

Truss system in 4-point design, which finds in spite of his low tubediameter of only 35 mm professional use in exhibition stand and store construction as well as event technology. Even though the dimensions are small there is enough space for lighting and sales promotion.

Through the use of cone connectors, the system is connected actuated by adherence. The connectors are included in delivery. Special design constructions and powder-coating are feasible in little time.


Technical data:

Overall width: 220 mm
Outer diameter tubing: 35 x 2 mm
Diagonals: 10 x 2 mm

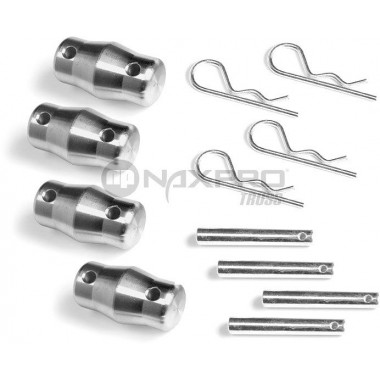

Including cone connectors with pin and r-spring (8 x cone connector, 16x bolt, 16x r-clip)
Alloy: EN AW 6060 T66
Weight: 3,80 kg
Dimensions: 50 x 50 x 22 cm (LxBxH)
Angle: 90º
TÜV approved
