Naxpro-Truss modular cabin

Naxpro-Truss's modular cabin consist of high-quality aluminum profiles in conjunction with exhibition building boards and are ideally suited as storage areas, kitchens or dressing rooms for use at trade fairs and events. The elements create clear boundaries and can be expanded as desired. It can also be used as a meeting room for conversations with a maximum of privacy and discretion.

Thanks to the lightweight construction, the modular plug-in system is convincingly simple to handle and can be designed individually and flexibly, depending on the application. The end connectors also ensure an extremely stable connection when using several elements.

The door elements can be locked on both sides. The individual elements are available as standard in 50cm and 100cm width and can also be customized on request. Mobile cabinets on heavy duty casters can also be implemented with the modular system from Naxpro-Truss.

The modern cabin is delivered completely ready-to-build and can easily be extended with a roof or shelves to enable a maximum of storage space.

You will receive the Naxpro-Truss modular system consisting of the following components:

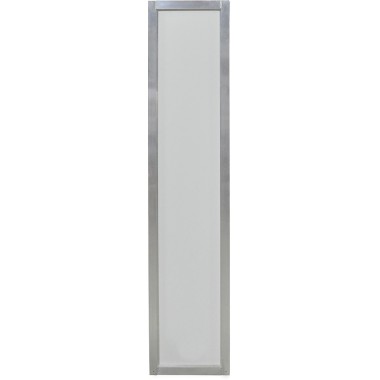

3 x Naxpro-Truss cabin wall module 100 cm
1 x Naxpro-Truss cabin door module (door = 198 x 72 cm)
7 x Naxpro-Truss cabin end connectors
1 x Naxpro-Truss cabin door connector
16 x Naxpro-Truss cabin bolt bent

On request, the elements can be individually printed as an advertising surface or constructed with special dimensions in a short time.

Technical data Naxpro-Truss modular booth:

Mainpipe: 50 x 50 x 2 mm
Alloy: EN AW 6060 T6
Outer dimensions: approx. 100 x 110 x 230 cm (LxWxH)
Total area: approx. 1 m²
Total weight: approx. 90 kg
