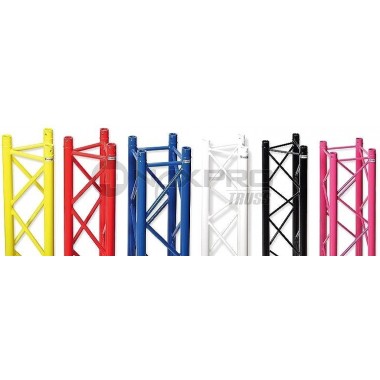

NAXPRO-TRUSS ED 31 STRAIGHT 100 CM | ED 31

Please note that it is not possible to attach a trackbar adapter / luminaire adapter in the corners. The corners serve only the power supply.Naxpro ED 31 Truss System

The TÜV certified ED31 trusses are based on the FD31 series, but in contrast to the standard model they are equipped with an additional bus bar, which allows a clean and flexible connection of various lighting and event technology.

In the assembly of truss structures, bus bar trusses offer clear advantages: no additional cables must be installed, faster mounting and demounting and unattractive cable clutter is avoided. Because all installed devices can be flexibly positioned, bus bar trusses are especially suited for situations where spotlights must be reassigned regularly, e.g. in furniture stores, car dealerships and hardware stores.Technical data:
Outer diameter tubing: 50 x 2 mm

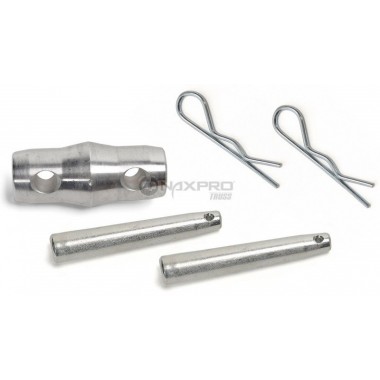

Including cone connectors with pin and r-spring (1 x cone connector, 2x bolt, 2x r-clip)
Alloy truss: EN AW 6082 T6
Alloy bus bar: EN AW 6060 T66
TÜV certified
Weight: 2,00 kg
Dimensions: 100 x 5,0 x 5,0 cm (LxBxH)
