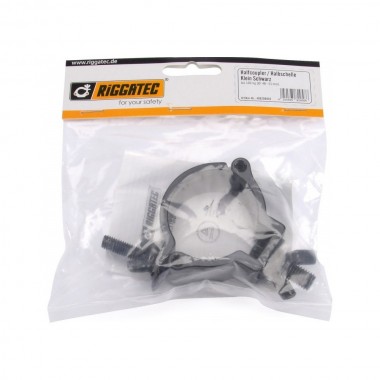

RIGGATEC HALFCOUPLER SLIM BLACK MAX. LOAD 100KG | Clamps

For 48 - 51 mm pipe diameter
Resilient up to 100 kg (tensile load)
TUV approved (certificate can be sent on request)
Clamp width: 30 mm
Maximum shearing load: 30 kg
Material: Aluminum 6061 T6 black
incl. device screw M10 zinc coated, retaining ring, grommet and wing nut
Lock screw M8 zinc coated with grommet and wing nut
Outer dimensions: 82 x 30 x 73 mm (length x width x height without device screw)
Weight: 0.145 kg
