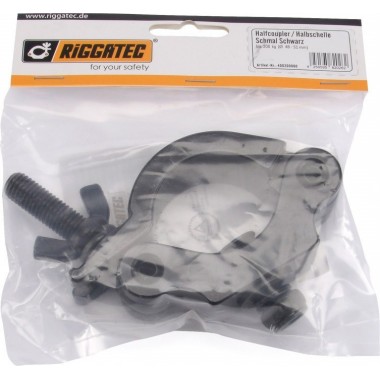

RIGGATEC HALFCOUPLER SLIM BLACK MAX. LOAD 200KG | Clamps

For 48 - 51 mm pipe diameter
Resilient up to 200 kg (tensile load)
TUV approved (certificate can be sent on request)
Clamp width: 30 mm
Maximum shearing load: 40 kg
Material: Aluminum 6061 T6 black
incl. device screw M10 zinc coated, retaining ring, grommet and self-locking nut
Lock screw M12 zinc coated with retaining ring, grommet and wing nut
Outer dimensions: 120 x 30 x 90 mm (length x width x height without device screw)
Weight: 0.35 kg
