RIGGATEC HAND CHAIN HOIST 0,50T - 10MT | Chain hoists

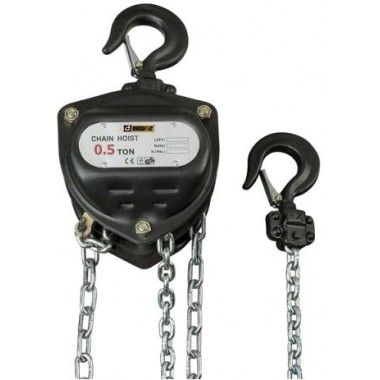

Riggatec hand chain hoist
The professional hand chain hoists from Riggatec are predestined for lifting heavy loads.
The ease of use and the very good pulling action allow precise control of the height of the loads.
Whether in event technology, in trade fair construction or in the garage, the hand chain hoist from Riggatec is extremely versatile and suitable for a wide variety of applications.
The solid sheet steel housing is black powder coated and can be easily attached to a variety of hooks and beams. It is optimally protected against corrosion and insensitive to moisture and dirt. All installed components are galvanized and ensure smooth and extremely precise chain guidance.
The chain hoist features overload protection and an automatic load pressure brake with independent double pawls for maximum reliability and safety. As a result, the loads are held automatically in all circumstances when lifting and lowering equally.

The galvanized round steel load chain, which is manufactured according to the European quality class 80, is certified according to DIN EN-818-7 and does not have to be constantly greased like the products of other manufacturers. To avoid rust, a light oiling is sufficient.
The result is less unpleasant odors and a cleaner working when operating the chain hoist.
The lower and upper hooks are rotatable and made of heat-treated steel with high tensile strength and have a cast, double-spring safety lock.

Advantages
High quality
Very good stability and high impact resistance.
Automatic load pressure brake when lifting and lowering
Fully galvanized for precise chain guidance and long service life
Compact and lightweight design
Extremely easy
Standard with overload protection from 0.5 t

Specifications
Working Load Limit (WLL):0,50 t
Standard lifting height:10,00 m
Standard operating height:9,50 m
Chain size ø: 5 x 15 mm
Chain strands:1
Tensile force (daN):24
Weight:19,00 kg
